Rubber Level Crossing Panel is used in the cross of Road and railway, it can keep the road in a same level so that the vehicles can pass the cross smoothly. The main material of this product is rubber, it is a result of the advanced prescription and advanced technique and manufacturing procedure. The big rubber mat is the one of the advanced products in the world, it takes place of cement board because it has good quakeproof ability and insulation ability, abraded proof ability, its distortion is very small after compressed time and time again, it has a high intensity, its high ability of against aging .It meet with the need of environment protection, economic and traffic safety, so it is widely used in all of the world.
Concrete sleepers:

Model	Length(mm)	Width(mm)	Height(mm)	Location
P43-1	1100	750	175	Middle
P43-2	1100	500	120	End
P50-1	1100	750	185	Middle
P50-2	1100	500	130	End
P60-1	1100	750	215	Middle
P60-2	1100	500	150	End
P75-1	1100	750	235	Middle
P75-2	1100	500	170	End
P75-3	1100	550	170	End

Wooden sleepers:

Model	Length(mm)	Width(mm)	Height(mm)	Location
P43-1	1100	750	160	Middle
P43-2	1100	500	160	End
P50-1	1100	750	170	Middle
P50-2	1100	500	170	End
P60-1	1100	750	190	Middle
P60-2	1100	500	190	End

Install Method

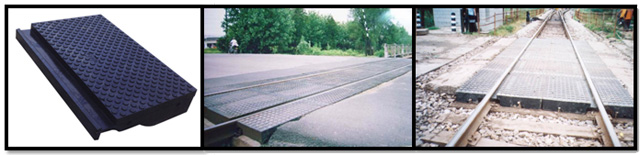

Install Photo
