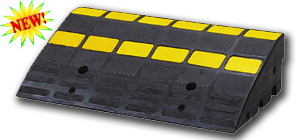

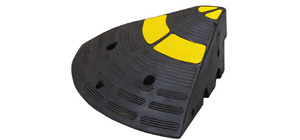

Yellow Reflecting Kerb Ramp	Reflecting Kerb Ramp End Cap

Model No:	Part	Height	Width	Length
DH-UP-1	Middle	100mm	300mm	600mm
	End			300mm
DH-UP-2	Middle	150mm	360mm	600mm
	End			300mm
DH-UP-3	Middle	200mm	450mm	600mm
	End			450mm

Model No:	Part	Height	Width	Length
DH-UP-4	Middle	100mm	250mm	600mm
	End	100mm	250mm	250mm

Black Rubber Kerb Ramp	Black Rubber Road Ramp

Model No:	Part	Height	Width	Length

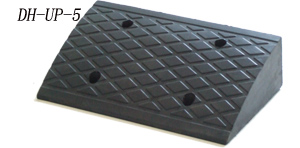

DH-UP-5	Middle	110mm	300mm	400mm
DH-UP-6	Middle	140mm	300mm	500mm
	End			300mm

Model No:	Part	Height	Width	Length
DH-UP-8	Middle	65mm	610mm	1070mm

Why Using Kerb Ramp:
Using to bicycle, wheelchair's and Car ramp (Roadway <-> Sidewalk).
Easy to install / move and sustain performance of strength force up to 20 ton.
Available to keep the vehicle inside and using to install for emergency situation.
High performance of face grip and high brightness reflective sheet on the product.

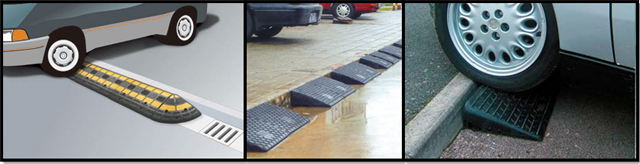

Where Kerb Ramp use:
