2-Channel Cable Protector for Big Cable Application

---

	Flap Materials	Polyurethane (PU)
	Ramp Materials	Nature Rubber
	Hinge Pin Material	Reinforced Steel Bar
	Operating Temp	-40¡æ ~ +60¡æ
	Max Load at 21¡æ	5000kg per tire

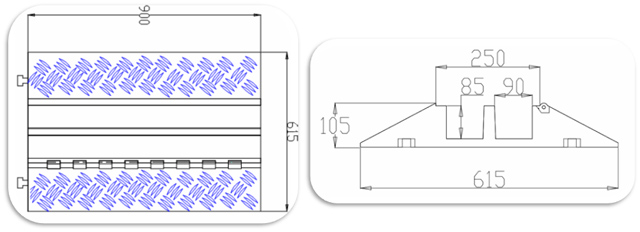

Model	DESCRIPTION	Length [A]	Width [B]	Height [C]	Channel Width [D]	Channel Height [E]	Weight
DH-CP-7	Yellow Flap Black Ramp	900mm	615mm	105mm	90mm	85mm	19.00kg

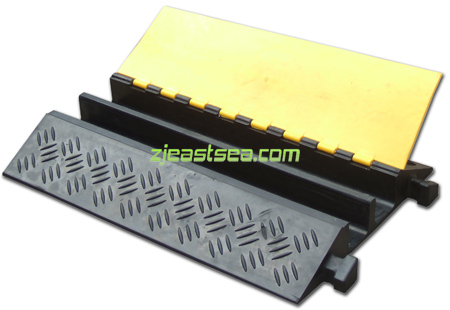

Protects cables and hose lines up to 85mm in diameter. All weather rubber construction with heavy load capacity. Hinged lid makes placing and removing cables and hose lines easy. 5-bar tread surface provides maximum traction. Heavy duty T-shaped connector interlocks modular sections. Easy to transport, setup, disassemble and store. Carrying handle is conveniently recessed on underside of protector. Safety warning symbols molded into lid surface.
